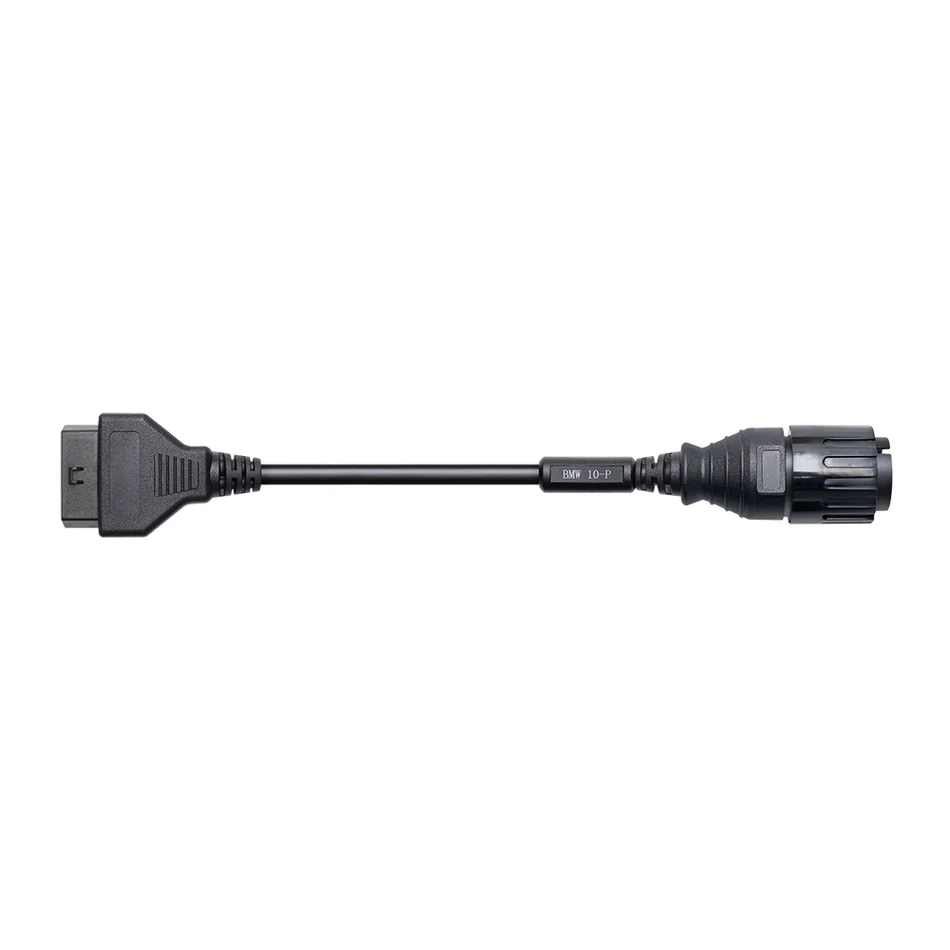

TOPDON BMW 10-Pin Adapter Cable for TopScan Moto
Product Overview
The TOPDON BMW 10-Pin Adapter Cable (Model M014) is a specialized hardware add-on engineered specifically for the TopScan Moto diagnostic system. It bridges the diagnostic tool to non-standard round diagnostic ports found across various BMW Motorrad motorcycle models, allowing technicians to bypass standard OBD2 limitations.
Key Features & Specifications
-
Dedicated 10-Pin Layout: Precision-molded round 10-pin connector designed specifically to interface with BMW motorcycle diagnostic ports.
-
Durable Construction: Built with heavy-duty wiring, secure connector pins, and robust molding designed to withstand demanding workshop and garage environments.
-
Signal Transmission: Facilitates correct wiring pinouts for flawless transmission of communication signals between the motorcycle’s electronic control units and the diagnostic dongle.
Core Diagnostic Uses
-
Protocol Bridging: Translates non-standard manufacturer diagnostic pinouts into a standard 16-pin OBD connection compatible with the TopScan Moto.
-
Full-System Access: Enables the diagnostic scanner to communicate with deep electronic systems (such as engine management, ABS, and body controllers) on older or specialized BMW motorcycle models.
Software License & Updates
-
Accessory Only: This product is a physical hardware adapter cable and does not include a software subscription package (software licenses are tied directly to the main TopScan Moto device unit).
What’s in the Box
-
1x M014 BMW 10-Pin Adapter Cable
-
