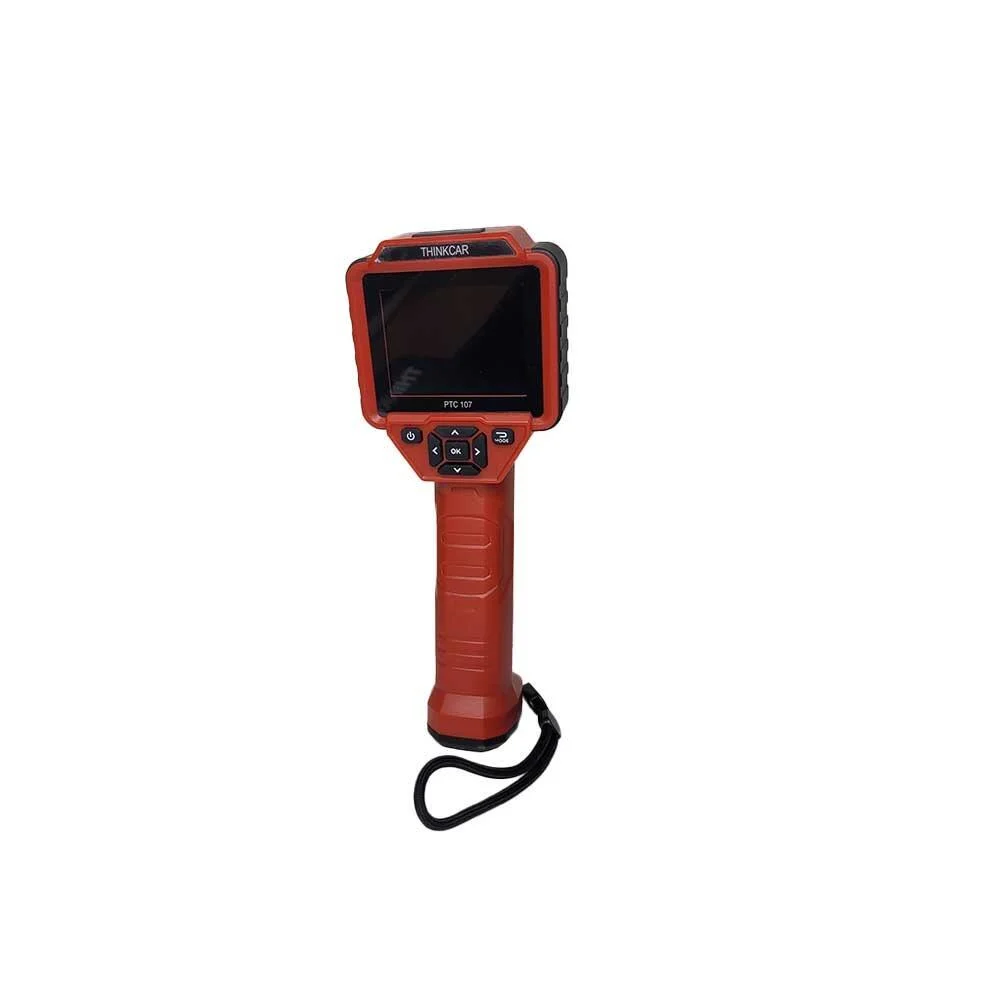

Thinkcar PTC107 Professional Thermal Imaging Camera
Product Overview
The Thinkcar PTC107 is a standalone, professional-grade handheld thermal imaging camera engineered specifically for automotive diagnostics and workshop applications. It allows technicians to instantly visualize temperature differences, heat signatures, and thermal anomalies to track down hard-to-find mechanical, electrical, and HVAC faults.
Key Features & Specifications
-
Infrared Resolution: High-performance 256 x 192 pixel VOx microbolometer infrared detector providing clear, detailed thermal heat maps.
-
Temperature Range: Wide measurement range from -20°C to 550°C (-4°F to 1022°F), suitable for everything from delicate electrical wiring to high-temperature exhaust and DPF inspections. Thermal Sensitivity (NETD): <= 40mK (0.04°C) for exceptional thermal contrast and precise temperature differentiation
-
Thermal Sensitivity: (NETD): <= 40mK (0.04°C) for exceptional thermal contrast and precise temperature differentiation
-
Display & Operation: Built-in 2.8-inch LCD touchscreen display allowing direct standalone operation without needing to tether to a separate diagnostic tablet.
-
Imaging Modes: Features 4 professional imaging modes (Thermal, Visible Light, Fusion, and Picture-in-Picture) to easily overlay heat maps onto real-world components.
-
Temperature Tracking: Automatically highlights and tracks Center, Maximum, and Minimum temperature points across the frame.
-
Power Supply: Equipped with a built-in 3200mAh rechargeable battery supporting convenient USB Type-C charging for everyday shop use.
Common Automotive Diagnostic Applications
-
Electrical Systems: Pinpoints high-resistance faults, overloaded fuses, failing relays, corroded battery terminals, and short circuits drawing parasitic current.
-
Engine & Exhaust: Identifies misfiring cylinders, blocked catalytic converters, restricted exhaust pipes, and uneven coolant flow.
-
HVAC & Climate Control: Evaluates heater core blockages, blend-door performance, and air-conditioning evaporator efficiency.
-
Brakes & Drivetrain: Detects binding brake calipers, stuck parking brakes, and overheating wheel bearings or differential housings.
-
Electric Vehicles (EVs): Tracks temperature distribution across high-voltage battery packs, charging ports, and active electric drive motors.
What’s in the Box
-
Thinkcar PTC107 Handheld Thermal Imager: The standalone 2.8-inch display unit with integrated thermal camera lens.
-
USB Type-C Charging Cable: For battery recharging and data transfer.
-
Power Adapter: Mains charging plug.
-
Carrying / Storage Pouch: Protective case for workshop transport.
-
Quick Start Guide: Setup instructions and user documentation.
