Description

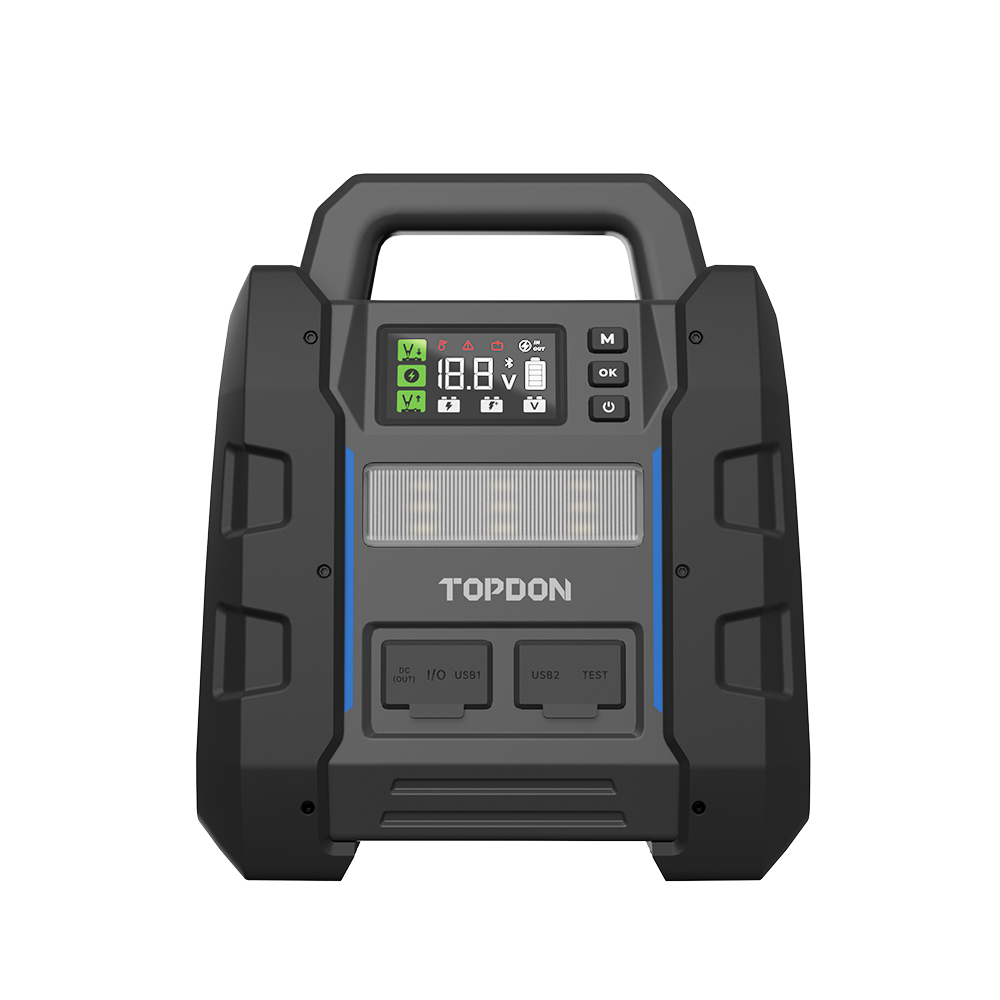

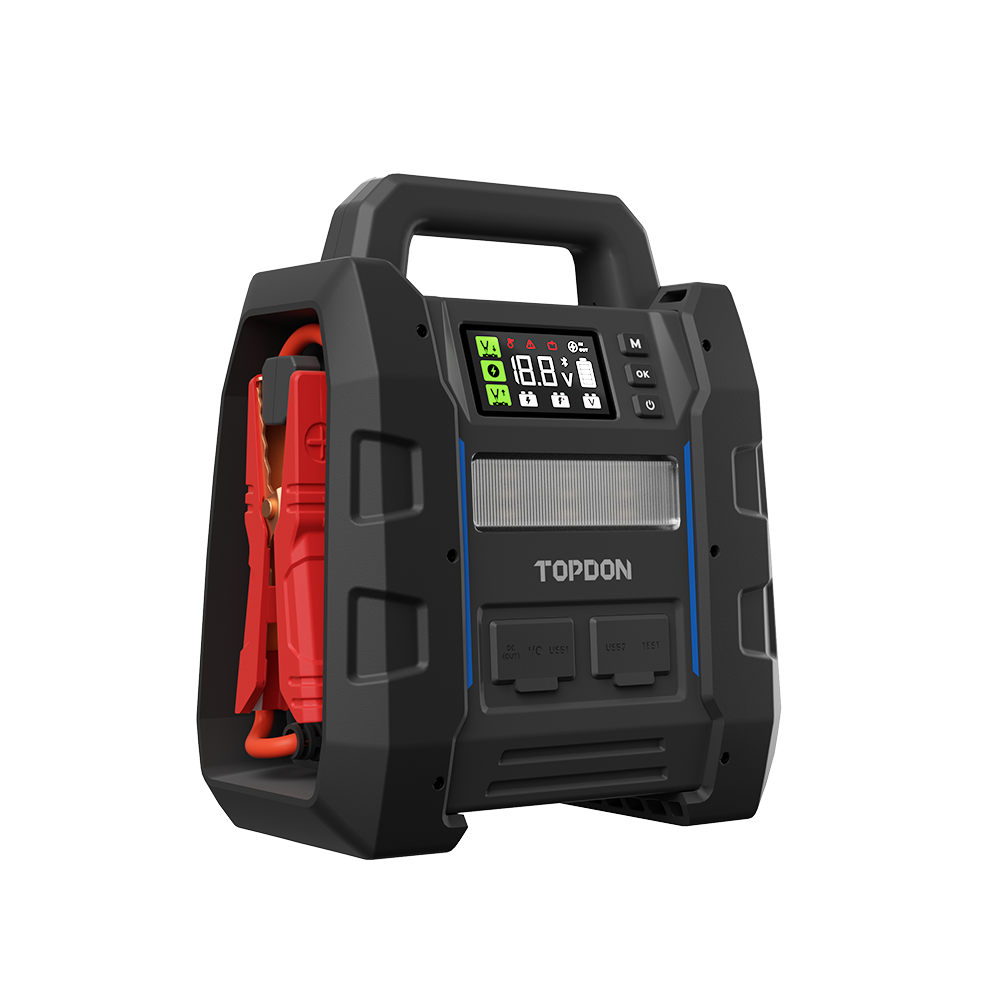

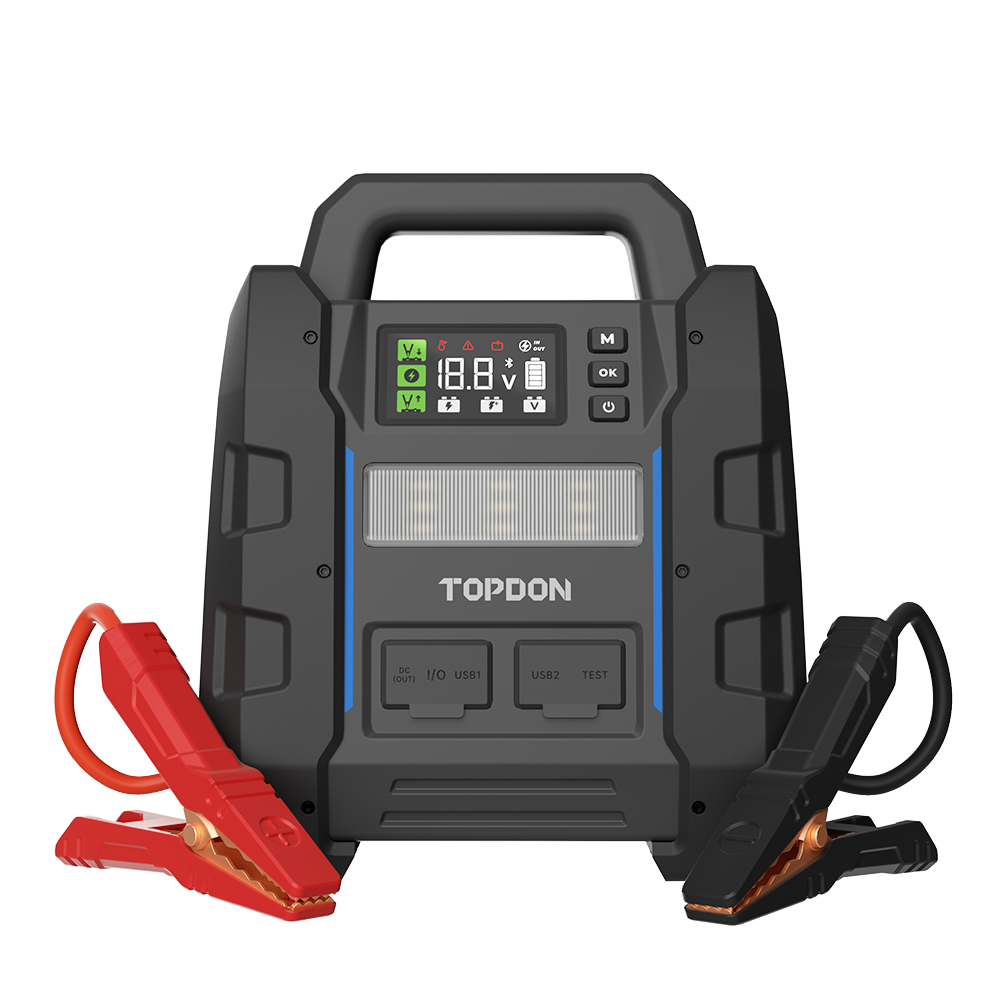

TOPDON V4500 Plus 4500A Heavy-Duty Jump Starter & App Battery Tester
Product Overview
The TOPDON V4500 Plus is an industrial-grade, ultra-powerful 2-in-1 portable jump starter and smart battery analyzer engineered for high-displacement 12V vehicles, commercial equipment, and professional workshop fleet rescue. Combining a massive 4500A peak current with Bluetooth app-enabled diagnostics and IP65 weather resistance, it delivers heavy-duty starting power and comprehensive system checks in the most demanding environments.
Key Features & Specifications
-
Massive 4500A Peak Current: Engineered specifically for heavy-duty 12V applications, capable of effortlessly jump-starting large gasoline and diesel engines up to 16.0 liters in displacement (including semi-trucks, agricultural trailers, construction equipment, off-road vehicles, and large marine craft).
-
High-Capacity Power Reserve: Features a high-density internal battery pack (32,000mAh / 120Wh) capable of delivering up to 45 jump-starts on a single full charge.
-
Integrated Smart Battery Tester: Equipped with specialized test clamps that pair with the TOPDON mobile app via Bluetooth, allowing technicians to conduct professional health tests, cranking tests, and charging system analyses before initiating replacements.
-
Extended 3-Minute Boost Mode: Unlike standard boosters that cut power after a few seconds, the manual Boost Mode maintains a sustained output for up to 3 minutes, ensuring multiple continuous start attempts on severely depleted or frozen 0-voltage batteries.
-
Lightning-Fast PD100W Bi-Directional Charging: Supports high-speed power delivery via USB-C, allowing the unit itself to recharge fully from 0% to 100% in just 90 minutes while serving as a high-capacity power bank for laptops, tablets, and phones.
-

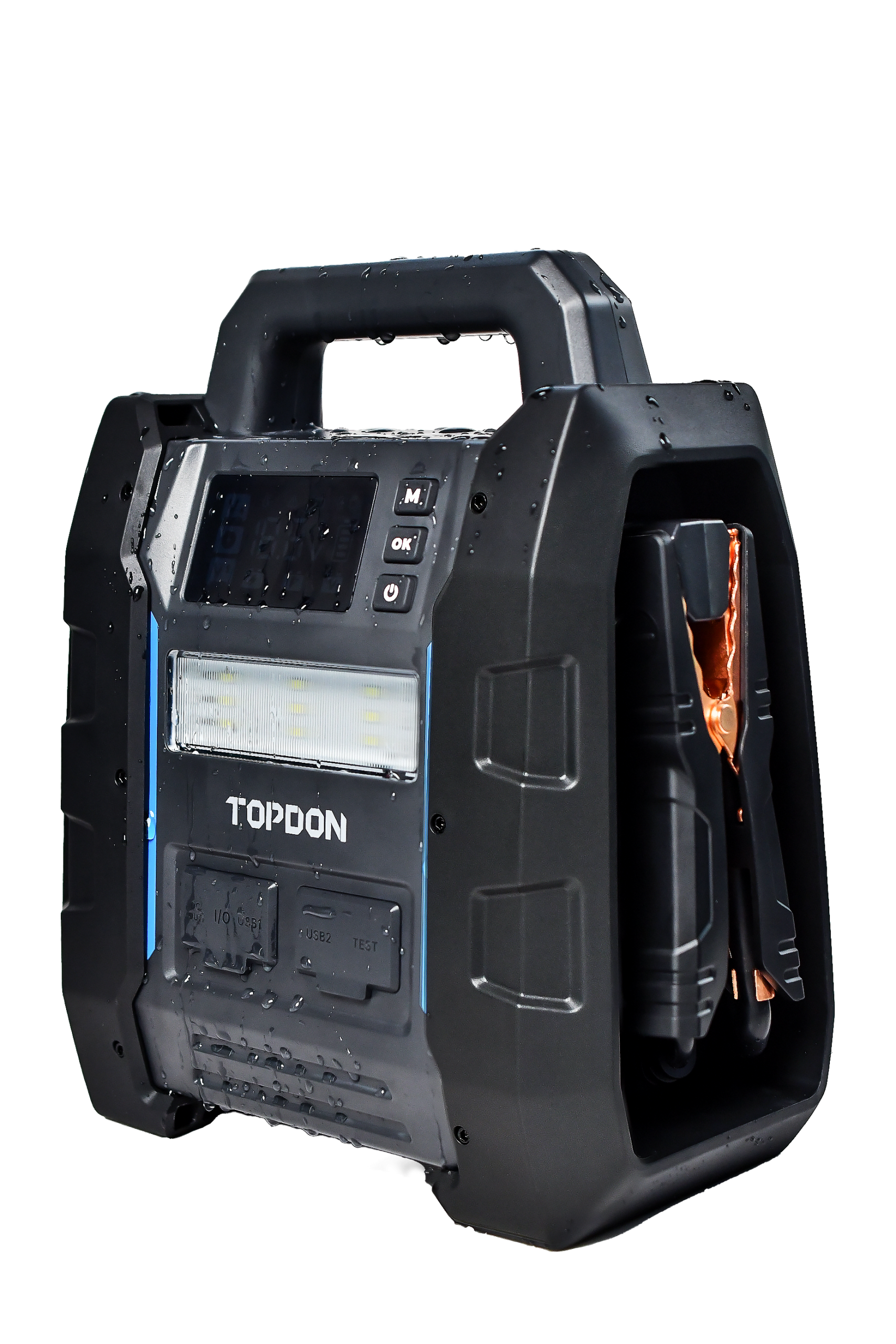

Rugged IP65 Weatherproof Housing: Built with a heavy-duty, dust-tight, and water-jet-resistant enclosure designed to perform reliably in pouring rain, snow, and harsh job-site conditions.
-
Advanced 10-Layer Safety Protection: Comprehensive multi-layer safeguards against reverse polarity, reverse charging, short circuits, overcurrent, overheating, over-discharge, overload, voltage fluctuations, and low-temperature/low-voltage anomalies.
-
High-Output Emergency Worklight: Features an integrated multi-mode LED array providing up to 500 lumens of light across 15 ultra-bright LEDs, supplemented by 6 red warning/SOS hazard lights.
Core Workshop & Roadside Applications
-
Heavy Commercial & Fleet Rescue: Rapidly reviving dead starter batteries on large transport lorries, agricultural tractors, and heavy plant machinery where standard packs fail.
-
Proactive Mobile Diagnostics: Running immediate health checks on suspect vehicle batteries in the field using the app integration to diagnose root causes before a breakdown.
-
All-Weather Field Operations: Dependable emergency backup power for remote service vans operating in freezing temperatures, heavy rain, or dusty environments.
Software License & Updates
-
App-Enabled Diagnostics: The companion TOPDON App is free to download for iOS and Android devices, utilizing Bluetooth connectivity for live battery testing data and system monitoring without ongoing subscription fees.

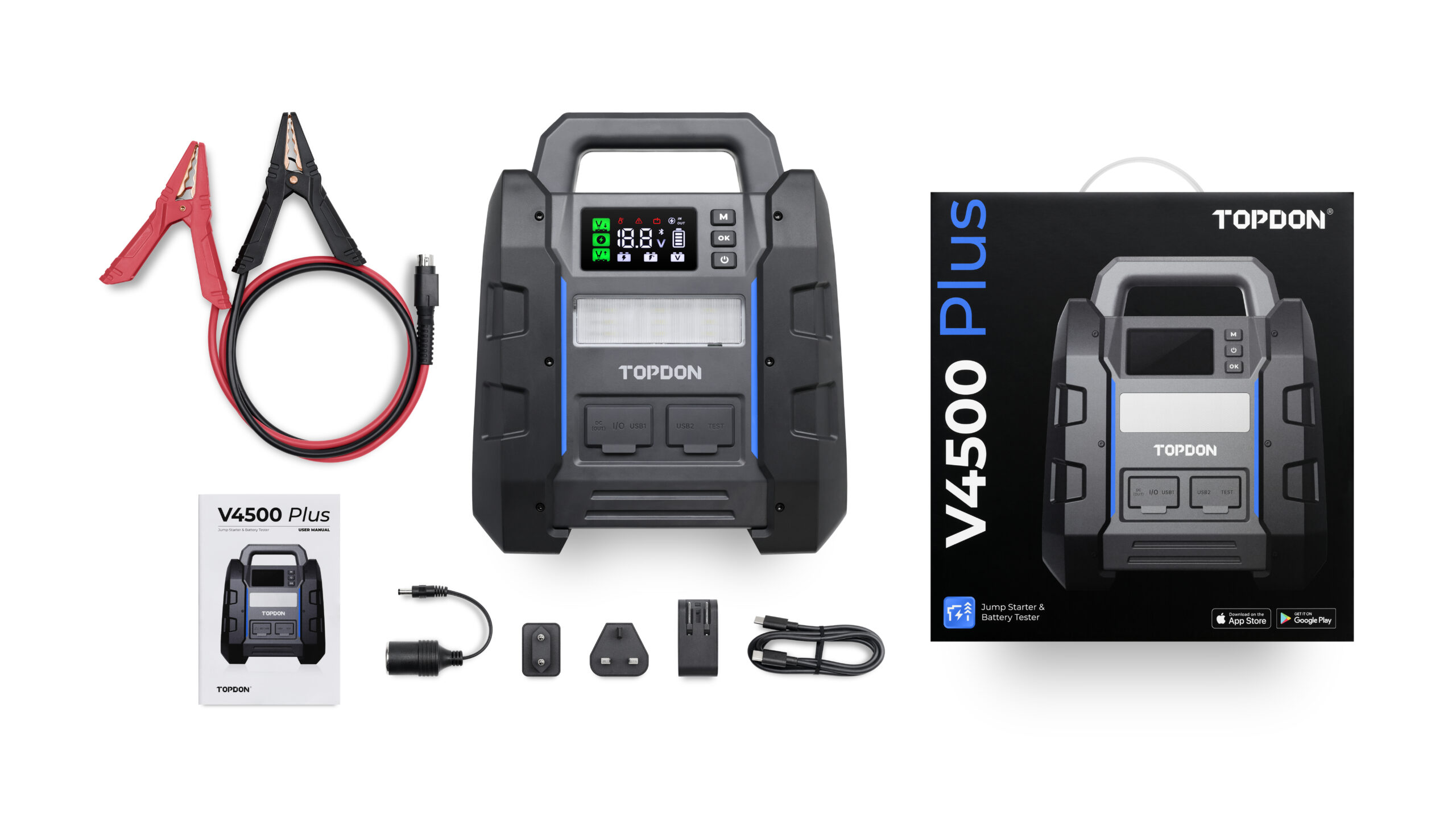

What’s in the Box
-
TOPDON V4500 Plus Main Heavy-Duty Unit
-

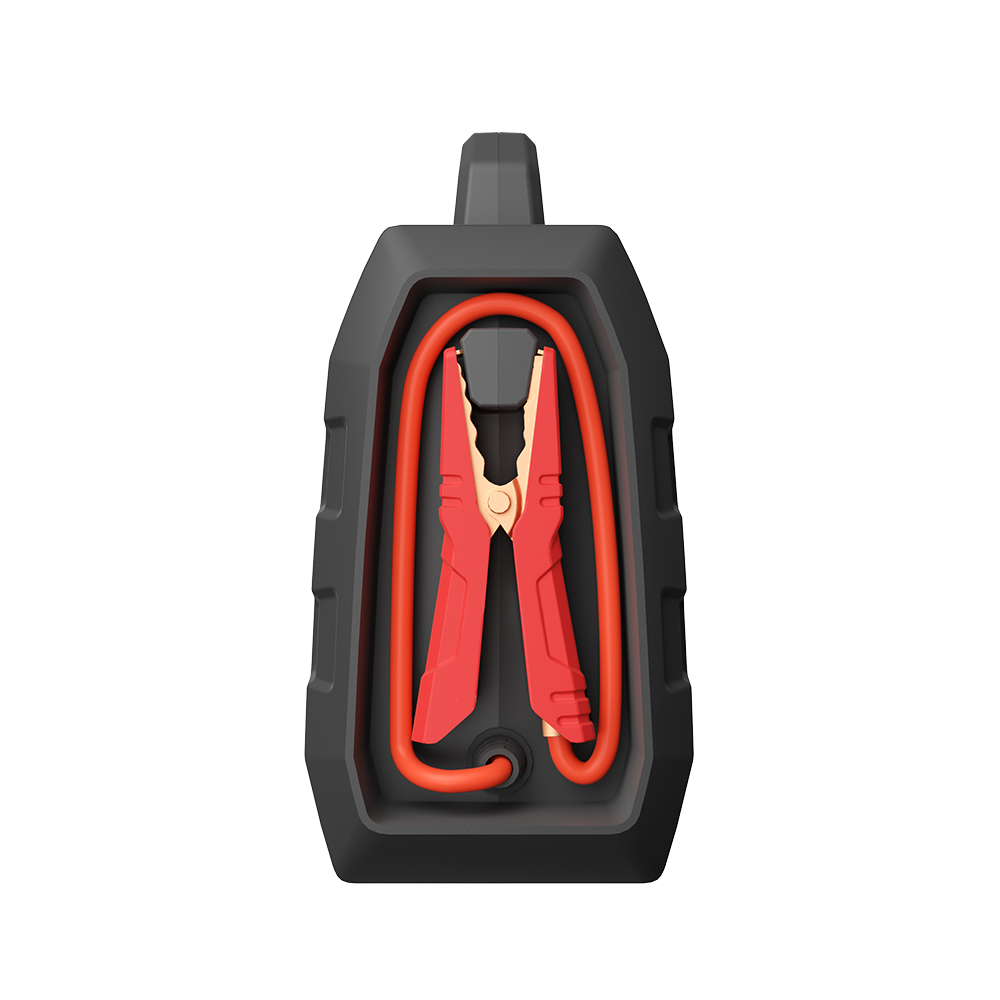

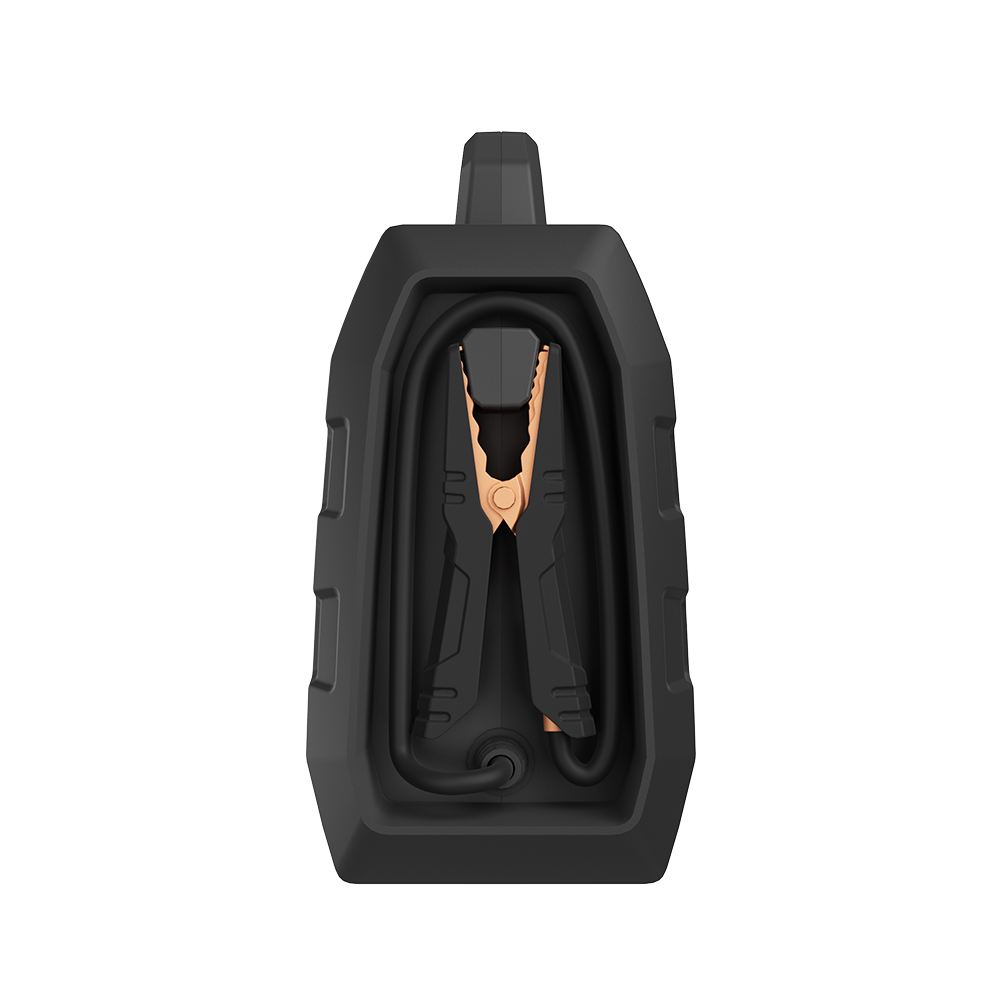

Heavy-Duty Smart Copper Jump Start Clamps
-
USB-C to USB-C PD100W Charging Cable
-
Power Adapter / Charger Unit
-
Rugged Protective Storage & Carrying Case
-
User Manual & Quick Start Guide
