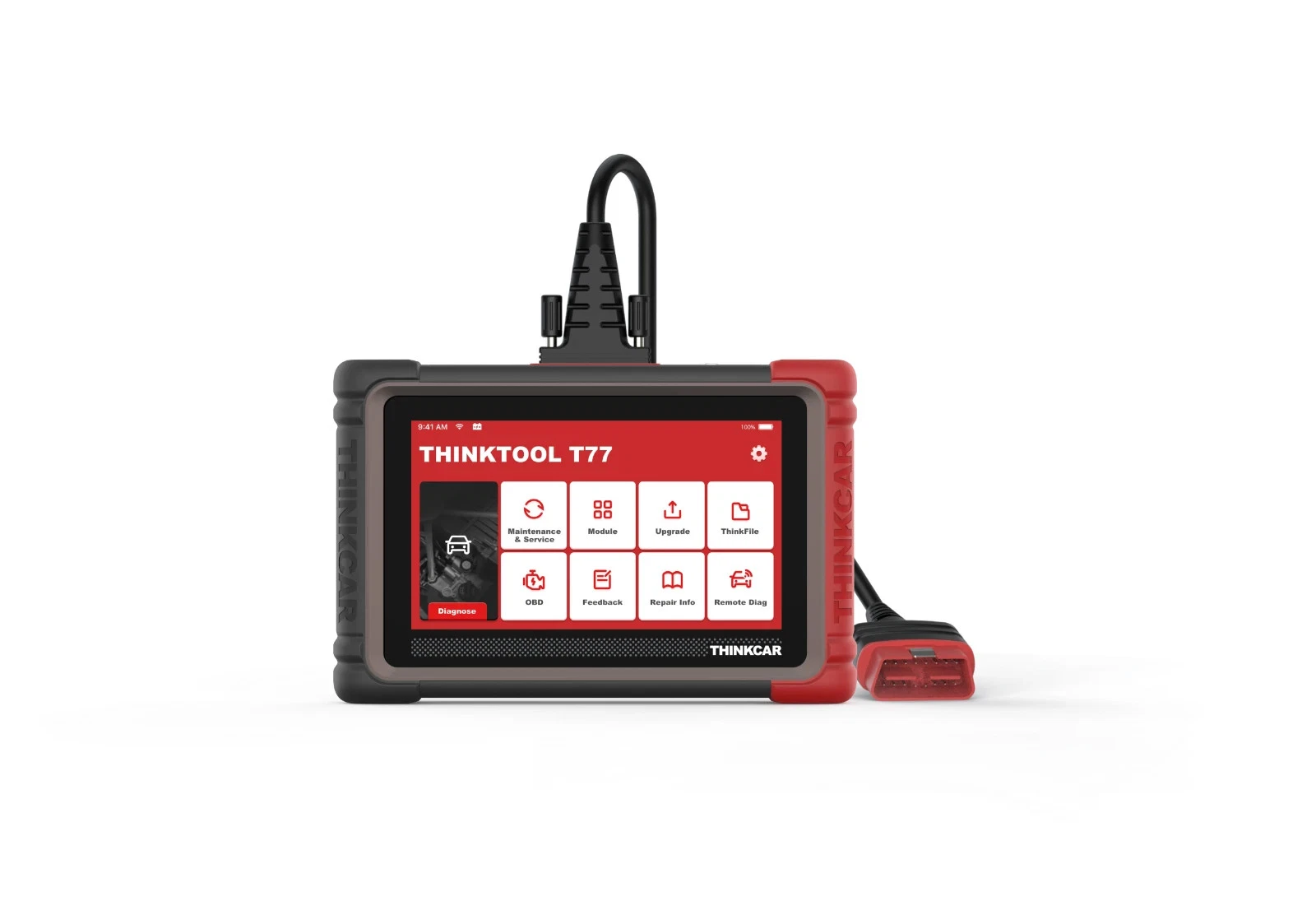

ThinkTool - T77 - 7-Inch - Plug-play Diagnostic Tool

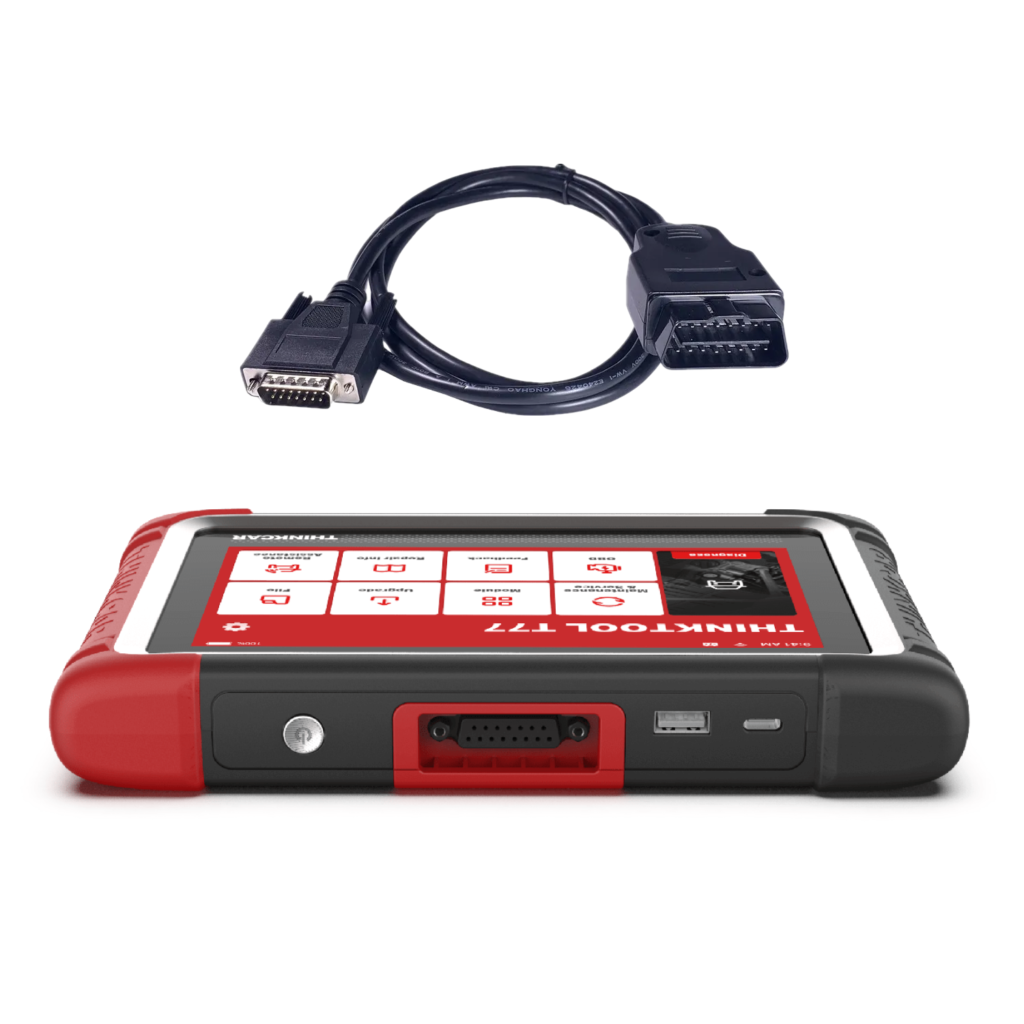

ThinkTool - T77 - 7-Inch - Plug-play Diagnostic Tool - Image 2

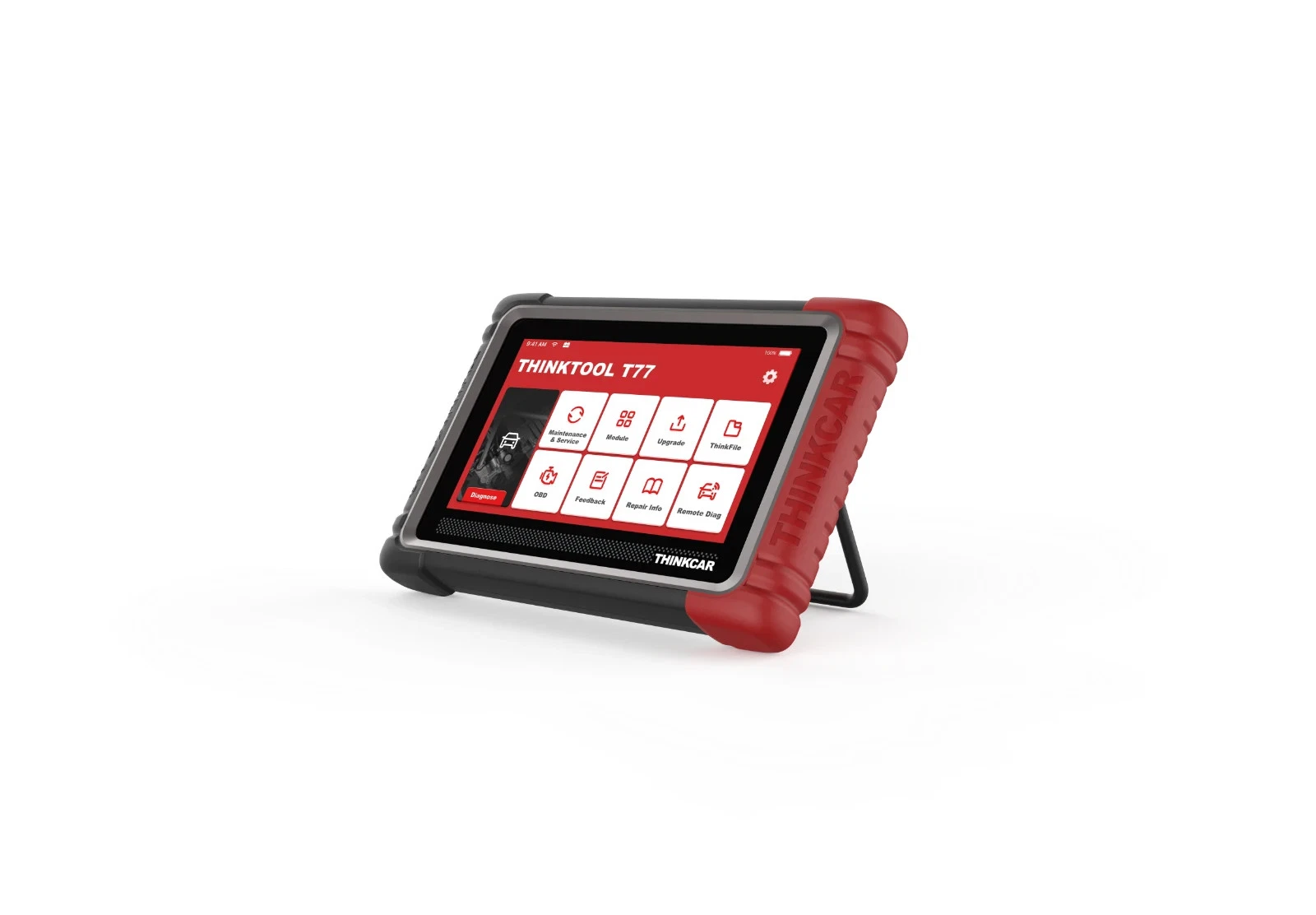

ThinkTool - T77 - 7-Inch - Plug-play Diagnostic Tool - Image 3

ThinkTool – T77 – 7-Inch – Plug-play Diagnostic Tool

thinkcar

£660.00

This cutting-edge diagnostic tool offers extensive system functionality and supports DO IP and CAN FD protocols. With enhanced coverage for modern passenger vehicles, it’s engineered to meet the latest automotive diagnostic demands. The Expert 195 maintains the sleek and practical design of its predecessor, ensuring smooth compatibility with various external modules, including printers, battery testers, thermal imagers, worklights, and TPMS modules.







Special Order Only - 3-5 Days For Delivery or Collection
Full Payment Required For Orders Delivered, Deposit Required for Click & Collect — Please contact our sales office on 0191 7393839
Categories: , , , Brand:

Description

ThinkTool T77 Professional Diagnostic Scan Tool

Product Overview

The ThinkTool T77 is a professional-grade, hardwired full-system automotive diagnostic tool engineered for workshops and serious technicians. Combining robust hardware with advanced software capabilities, it delivers OE-level diagnostics, bi-directional controls, and extensive maintenance service functions. Featuring a direct hardwired DB-15 connection, it ensures a stable, highly reliable link to modern and legacy vehicles without wireless dropouts.

Key Features & Specifications

  • Display & Hardware: Equipped with a clear 7-inch high-definition touchscreen, a responsive quad-core processor, and a long-lasting 6000mAh/6300mAh internal battery.
  • Connection Type: Hardwired via a heavy-duty 1.2-meter pluggable DB-15 diagnostic cable for stable, interference-free communication.
  • Modern Protocol Support: Fully compatible with modern automotive communication standards including DoIP (Diagnostics over IP) and CAN FD, alongside standard OBDII, EOBD, and legacy protocols (KWP2000, ISO, UDS, VPW, PWM).
  • Vehicle Coverage: Comprehensive all-makes coverage supporting over 90 global vehicle brands for models manufactured from 1996 onwards.

Core Diagnostic Capabilities

  • Full-System Diagnostics: Deep scanning across all available electronic control units (ECUs)—including engine, transmission, ABS, SRS, body control, and infotainment.
  • Read & Clear Fault Codes (DTCs): Instantly identifies trouble codes and clears them to turn off dashboard warning lights.
  • Live Data Streaming: Real-time graphical and text display of ECU sensor parameters and data streams for accurate fault tracking.
  • Bi-Directional Control / Active Tests: Executes active component tests, actuation tests, and system overrides to pinpoint mechanical and electrical failures.
  • ECU Coding & Adaptations: Supports advanced matching, coding, and basic adjustments where supported by the vehicle manufacturer.

Maintenance & Reset Functions –

Supported 34+ Maintenance & Reset Functions

Function Category Specific Resets & Adaptations Covered
Engine & Powertrain
• Oil Maintenance Reset
• Diesel Particulate Filter (DPF) Regeneration
• Electronic Throttle Relearn / Adaptation
• Injector Coding
• Gearbox / Transmission Learning
• Gear Learning (Crankshaft Position Variation Learn)
• EGR Adaptation
• Coolant Bleeding
• Air/Fuel Ratio (A/F) Reset
• Transport Mode Deactivation
Brakes & Chassis
• Electronic Parking Brake (EPB) / Brake Reset
• ABS Bleeding / Brake Bleeding



• Steering Angle Sensor (SAS) Reset
• Tyre Pressure Monitoring System (TPMS) Reset
• Suspension Level Calibration
• Tyre Reset / Size Change Adaptation
Electrical & Body Systems
• Battery Matching / Registration (BMS)
• Airbag / Restraint Reset
• Sunroof Initialization & Calibration
• A/C System Relearn & Initialization



• Windows Calibration / Door & Window Matching
• Seat Calibration
• Start/Stop System Reset
• Language Change
Advanced Environmental & Control
• AdBlue Reset (SCR System)
• NOx Sensor Reset
• Gas Particulate Filter (GPF) Regeneration



• Headlight / AFS (Adaptive Front-lighting System) Reset
• IMMO / Key Programming Support
• High Voltage Battery Diagnostics

Expansion & Usability

  • Modular Expansion: Built with expansion ports to support optional modular diagnostic accessories such as thermal imagers, video endoscopes, or work lights.
  • Reporting & Feedback: Integrated cloud-based report management allows technicians to generate, save, and share diagnostic pre-scans and post-scans via email or Wi-Fi, alongside a direct online feedback portal for technical support.



ThinkTool T77 Standard Package Contents

  • ThinkTool T77 7-Inch Diagnostic Tablet: The core Android-based handheld unit featuring a touchscreen and internal battery.

  • Hardwired DB-15 Diagnostic Cable: A heavy-duty 1.2-meter pluggable cable supporting DoIP and CAN FD protocols.

  • USB / Data Cable: For charging, file transfers, and connecting peripheral modules.

  • Power Adapter / Charger: Mains plug charger unit.

  • Protective Carrying Case: Blow-molded or hard-shell storage case to protect the tablet and cable during transport.

  • Quick Start Guide / User Manual: Printed documentation and setup instructions.
