TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer
TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer - Image 2
TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer - Image 3
TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer - Image 4
TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer - Image 5
TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer - Image 6
TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer - Image 7
TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer - Image 8

TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer

Topdon

£875.00

The TOPDON ArtiDiag HD is a professional heavy-duty commercial vehicle diagnostic tablet engineered specifically for mechanics and fleet maintenance workshops. Designed to service heavy-duty commercial trucks, buses, construction equipment, and agricultural machinery, it delivers deep electronic system diagnostics and maintenance resets across over 60 heavy-duty vehicle brands.







Special Order Only - 3-5 Days For Delivery or Collection
Full Payment Required For Orders Delivered, Deposit Required for Click & Collect — Please contact our sales office on 0191 7393839
Categories: , , Brand:

Description

TOPDON UltraDiag 2-in-1 Diagnostic Scanner & Key Programmer

Product Overview

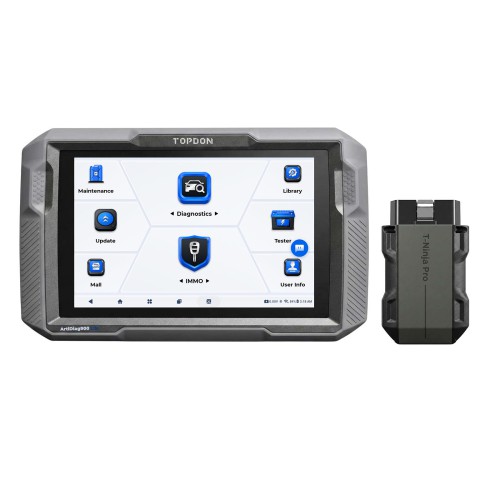

The TOPDON UltraDiag is a professional, versatile 2-in-1 diagnostic tablet and key programming system engineered for repair shops and automotive locksmiths. Combining full-system diagnostics, bi-directional active testing, and advanced immobilizer (IMMO) capabilities into an 8-inch Android touchscreen tablet, it bridges the gap between general fault finding and specialized key coding.

Key Features & Specifications

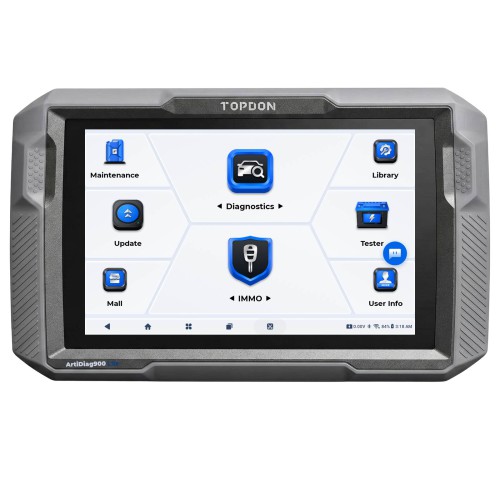

  • Display & Hardware: Clear 8-inch high-definition touchscreen (1280×800 resolution) powered by a quad-core 2.0GHz processor, 4GB RAM, 64GB ROM, and Android 11.0.
  • Battery Capacity: Heavy-duty internal 10,000mAh rechargeable lithium battery designed to sustain a full day of mobile workshop diagnostics.
  • Wireless VCI Connectivity: Utilizes a compact wireless Bluetooth VCI dongle with native support for high-speed CAN-FD and standard OBD communication protocols.
  • Vehicle Coverage: Comprehensive full-system diagnostic coverage across over 100 global passenger vehicle brands.

Core Diagnostic Capabilities

  • Full-System Scanning: Deep electronic control unit (ECU) health checks across all available vehicle modules (Engine, Transmission, ABS, Airbag, Body Control, Gateway, TPMS, etc.).
  • Bi-Directional Control / Active Tests: Sends direct actuator commands to verify component integrity (such as cycling fuel injectors, testing coolant pumps, operating windows, and checking wipers).
  • ECU Coding: Supports module configuration matching and unlocks customizable options on supported vehicles.
  • Repair Data Library: Integrated knowledge base featuring diagnostic trouble code (DTC) analysis, Technical Service Bulletins (TSBs), and built-in repair assist guides.

Advanced Key Programming & IMMO Functions

  • Key Matching & Learning: Comprehensive immobilizer support across 40+ vehicle brands to program new keys, add spare fobs, and program remote controls.
  • PIN Code Reading: Directly extracts security PIN codes through the OBD port on compatible models to streamline key generation.
  • All Keys Lost Support: Specialized routines to help generate new master keys when all original keys have been misplaced (particularly strong across Asian and American nameplates).

Supported 30+ Maintenance & Reset Functions

  • Oil Maintenance Reset
  • Electronic Parking Brake (EPB) Reset
  • Diesel Particulate Filter (DPF) Regeneration
  • Steering Angle Sensor (SAS) Reset
  • Battery Management System (BMS) Reset
  • ABS Brake Bleeding
  • Injector Coding
  • Electronic Throttle Adaptation
  • Tire Pressure Monitoring System (TPMS) Reset
  • Airbag Reset
  • AdBlue Reset
  • Start/Stop Reset

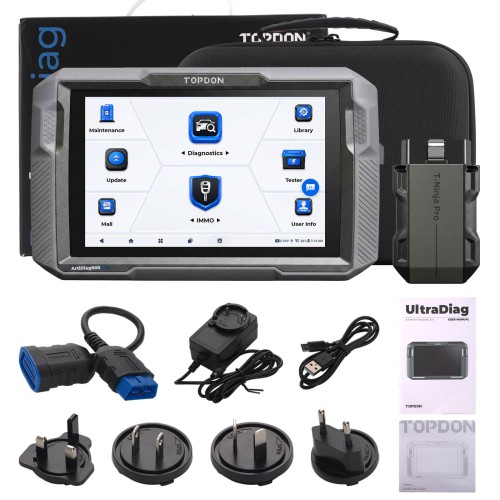

What’s in the Box

  • TOPDON UltraDiag 8-Inch Android Tablet
  • Wireless Bluetooth VCI Dongle
  • Main OBDII Connecting Cable
  • USB Type-A to Type-C Data/Charging Cable
  • Power Adapter Plug
  • Protective Storage / Carrying Case
  • Quick Start Guide
