Description

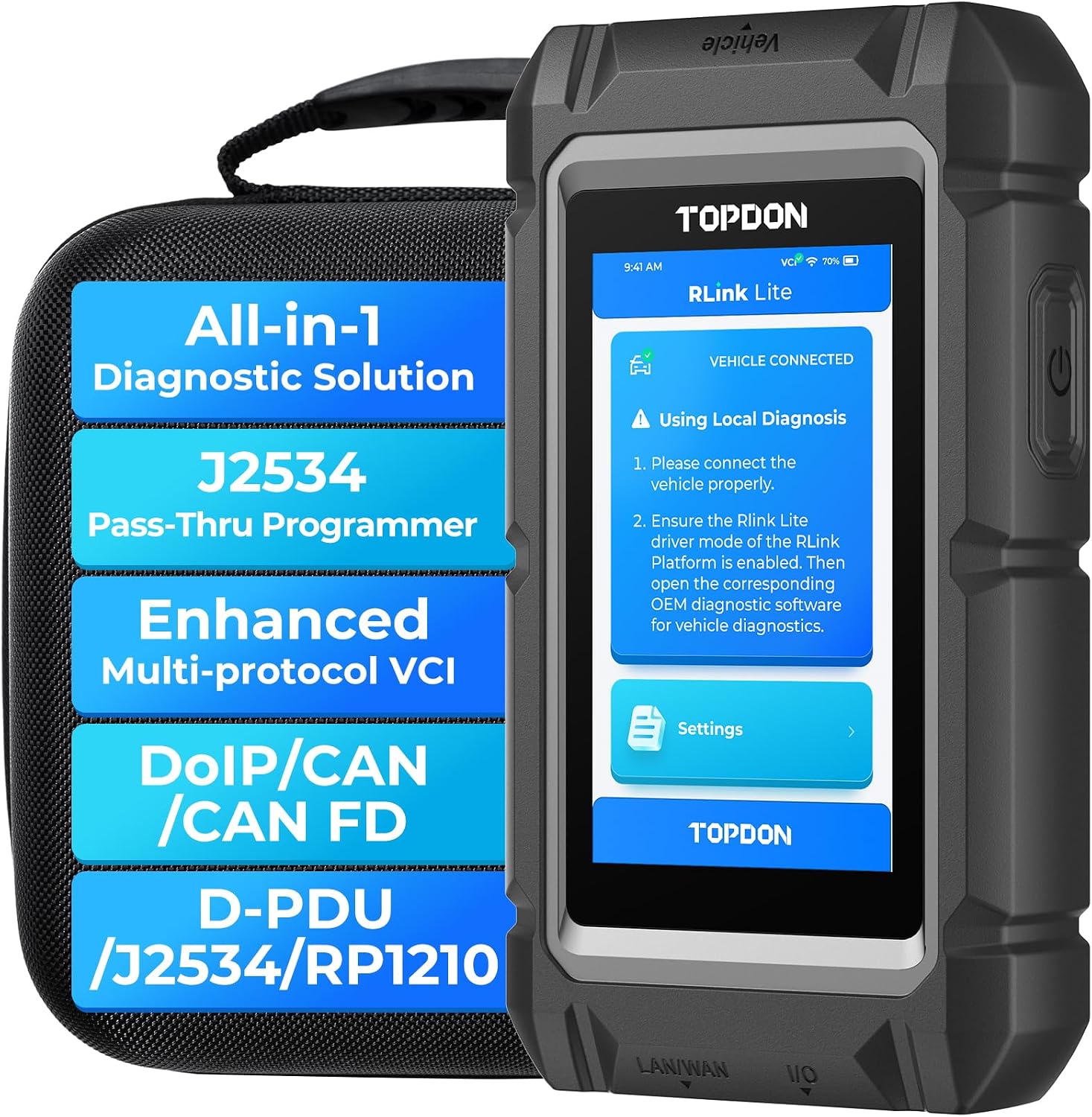

TOPDON RLink Lite (J2534 & Remote) Pass-Thru VCI
Product Overview
The TOPDON RLink Lite is an advanced, professional OE-level Vehicle Communication Interface (VCI) and Pass-Thru programming device featuring an integrated 5-inch touchscreen and Android operating system. Designed to give independent workshops factory-level capabilities, it supports J2534 standards and acts as a remote diagnostic receiver to bridge vehicles directly to master technicians for advanced ECU programming and coding.
Key Features & Specifications
-
Display & Operating System: Built-in 5-inch LCD touchscreen (854×480 resolution) running Android 11 on a 1.8GHz quad-core processor with 2GB RAM and 32GB ROM.
-
Protocol Compliance: Fully compliant with SAE J2534-1 & J2534-2, ISO 22900 (D-PDU), and RP1210 industry standards.
-
Modern Network Support: Native support for high-speed protocols including DoIP (Diagnostics over IP), CAN-FD, UDS, and K-Line for modern vehicle architectures.
-
Connectivity Options: Features Wi-Fi (802.11 b/g/n), a high-speed RJ45 Ethernet port (RMII 100M) for stable wired communication, and USB 2.0.
-
Power Management: Equipped with an internal 5050mAh rechargeable lithium battery and a wide 6V–36V operating voltage range to prevent data drops during long programming sessions.
Core Remote & Programming Capabilities
-
Remote Pass-Thru Receiver: Connects your workshop bay over a secure data pipeline to remote diagnostic expert networks, allowing remote technicians to perform complex online coding, module matching, and key programming.
-
OEM Software Integration: Functions as a robust J2534 pass-thru box compatible with manufacturer software for brands such as BMW (ISTA), Mercedes-Benz (Xentry), VAG (ODIS), Ford, GM, and Toyota (Techstream).
-

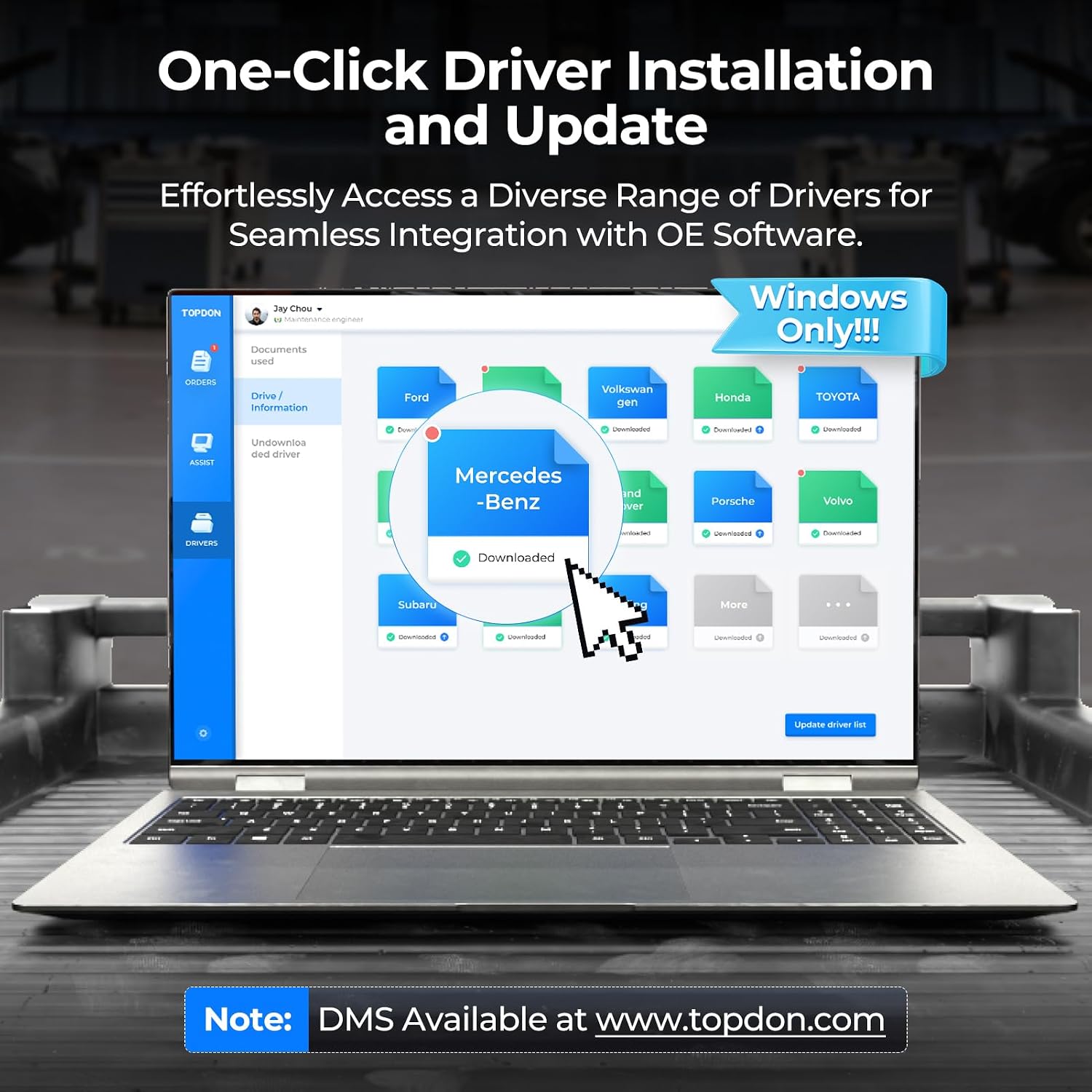

Driver Management System (DMS): Features TOPDON’s proprietary DMS platform for one-click driver downloads, updates, and integrated OEM operation guides.
What’s in the Box
-
TOPDON RLink Lite VCI Unit (with 5-inch touchscreen)
-
2-Meter OBD2 Diagnostic Cable
-
5-Meter RJ45 Network Cable
-
1.5-Meter USB 2.0 Cable
-
12V DC Power Adapter
-
Heavy-Duty Carrying Case
-
Quick Start Guide
