ThinkCar ThinkTool Master CV 10-Inch HGV, Truck, and LCV Diagnostic Tool
ThinkCar ThinkTool Master CV 10-Inch HGV, Truck, and LCV Diagnostic Tool - Image 2
ThinkCar ThinkTool Master CV 10-Inch HGV, Truck, and LCV Diagnostic Tool - Image 3

ThinkCar ThinkTool Master CV 10-Inch HGV, Truck, and LCV Diagnostic Tool

thinkcar

£2,395.00

This cutting-edge diagnostic tool offers extensive system functionality and supports DO IP and CAN FD protocols. With enhanced coverage for modern passenger vehicles, it’s engineered to meet the latest automotive diagnostic demands. The Expert 195 maintains the sleek and practical design of its predecessor, ensuring smooth compatibility with various external modules, including printers, battery testers, thermal imagers, worklights, and TPMS modules.







Special Order Only - 3-5 Days For Delivery or Collection
Full Payment Required For Orders Delivered, Deposit Required for Click & Collect — Please contact our sales office on 0191 7393839
Categories: , , , , Brand:

Description

ThinkCar ThinkTool Master CV 10-Inch HGV, Truck, and LCV Diagnostic Tool

Product Overview

The ThinkCar ThinkTool Master CV is a high-performance, 10.1-inch industrial diagnostic tablet engineered specifically for commercial vehicles, heavy-duty trucks, light commercial vehicles (LCVs), and off-highway machinery. Operating on Android 10 with 12V and 24V system support, it combines deep electronic diagnostics, bi-directional controls, and a comprehensive set of non-standard commercial adapter cables.

Key Features & Specifications

  • Display & Hardware: Large 10.1-inch high-definition touchscreen, powered by a 2.0GHz quad-core processor, 4GB RAM, 128GB internal storage, and an 8MP rear camera.
  • Battery Capacity: Heavy-duty internal 12600mAh / 3.7V rechargeable lithium battery.
  • VCI Connection: Utilizes the robust ThinkDiag HML heavy-duty wireless VCI module designed for commercial vehicle electrical architectures.

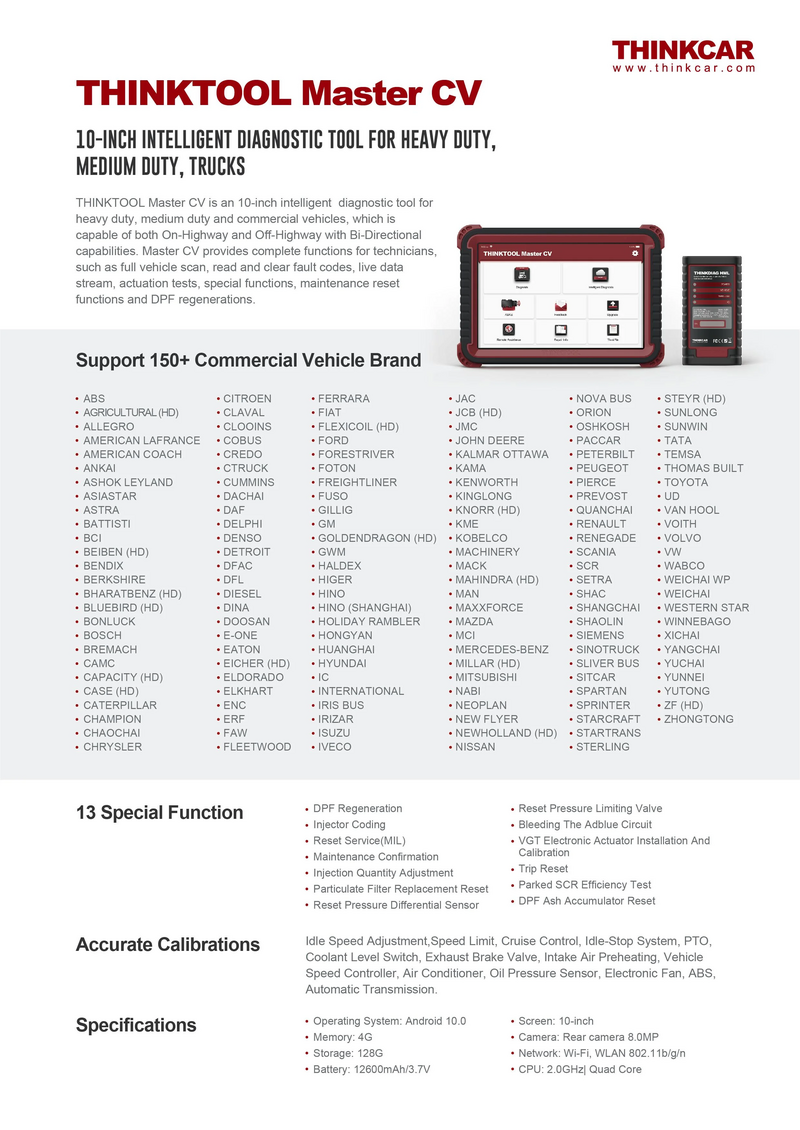

  • Vehicle Coverage: Extensive global support covering over 150 to 190+ commercial, medium-duty, and heavy-duty truck brands (including On-Highway and Off-Highway machinery).

Core Diagnostic Capabilities

  • Full-System Scanning: Deep electronic control unit (ECU) health scans covering engine, transmission, ABS, retarder, instrument cluster, emissions control, and suspension modules.
  • Fault Codes (DTCs): Fast reading, in-depth text interpretation, and clearing of diagnostic trouble codes.
  • Live Data Streams: Real-time multi-parameter graphical waveform data tracking and recording for complex system faults.
  • Bi-Directional Control / Active Tests: Executes active component overrides, actuation tests, and system testing to isolate mechanical and electrical failures.

Specialized Commercial Functions & Resets

Equipped with heavy-duty specific service functions, including:
  • Diesel Particulate Filter (DPF) Regeneration & Ash Accumulator Reset
  • Injector Coding & Injection Quantity Adjustment
  • AdBlue Circuit Bleeding
  • VGT Electronic Actuator Installation & Calibration
  • Parked SCR Efficiency Tests
  • Service Light (MIL) & Maintenance Confirmations
  • Pressure Differential Sensor & Pressure Limiting Valve Resets
  • Component Parameter Calibrations (Idle Speed, Speed Limits, Cruise Control, PTO)

What’s in the Box

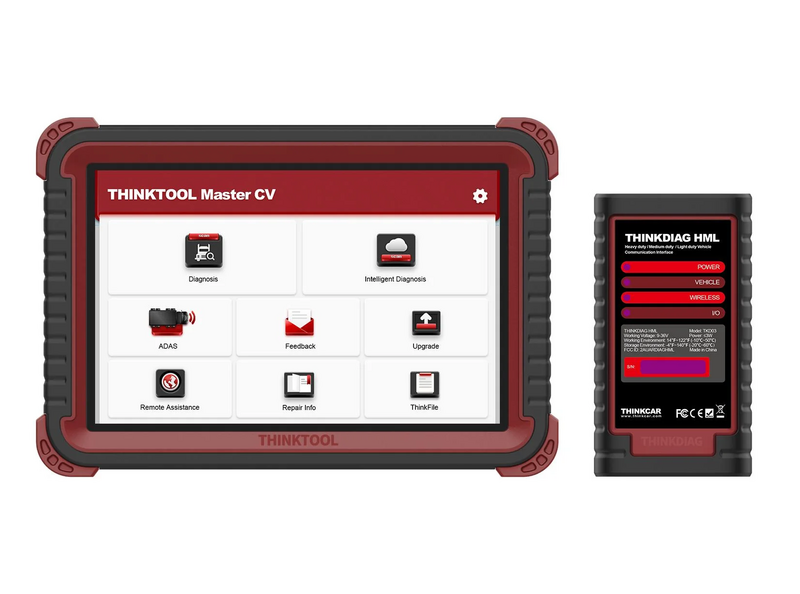

  • ThinkTool Master CV 10-Inch Tablet: The core Android 10 touchscreen display unit.
  • ThinkDiag HML VCI Connector: Heavy-duty wireless communication dongle.

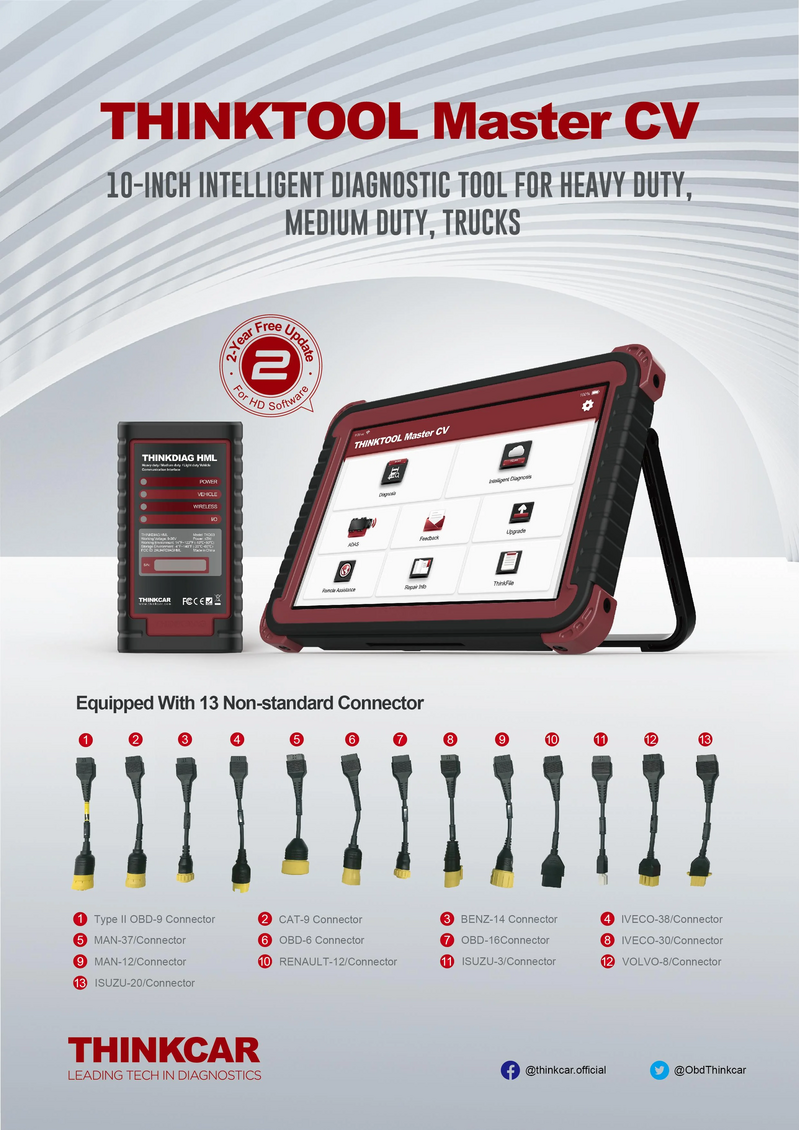

  • 13 Non-Standard HD Diagnostic Connectors / Adapter Cables: Comprehensive legacy and brand-specific commercial adapters (including CAT-9, Benz-14, Iveco-30/38, Man-12/37, Renault-12, Isuzu-3/20, Volvo-8, OBD-6, OBD-9, etc.).
  • Main Diagnostic & Jumper Cables: Standard OBDII and multi-pin jumper connections.
  • Power Adapter & Charging Cable: Mains charging block and USB lead.
  • Carrying Case: Rugged workshop storage case.
  • Quick Start Guide: Setup documentation and software activation information.
